FOOTPEDAL home

The files on this page are not mine. They can be found at www.metaldropbox.com .
ESAB footpedal (metaldropbox)

FILENAMES:   esab_foot_pedal.jpg esab_foot_pedal-2.jpg

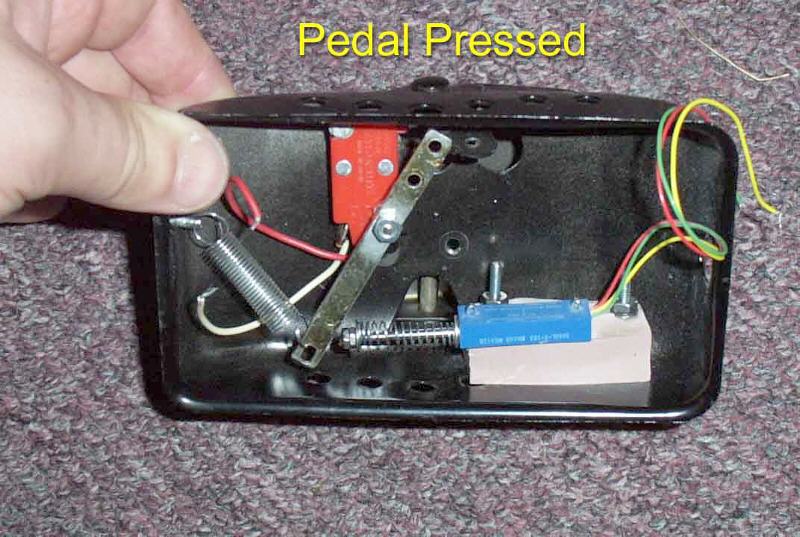

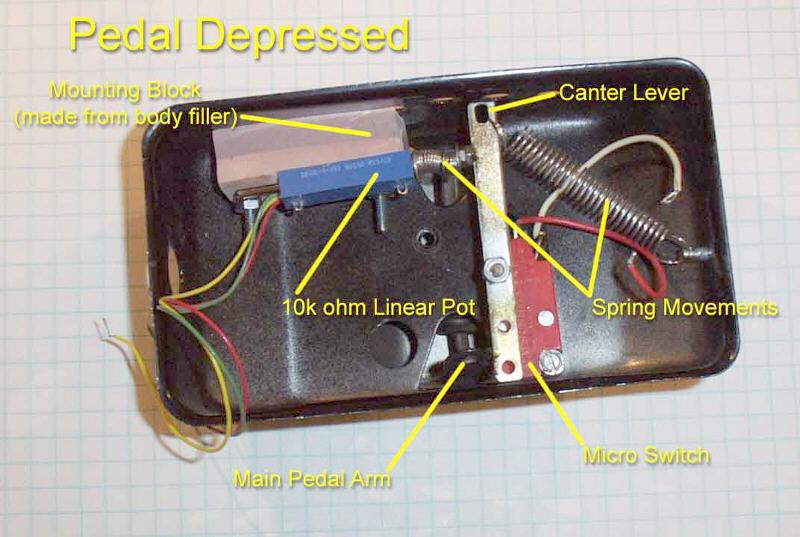

DESCRIPTION:   These are pictures of shop built current control pedal for a welder.
  Posted by Kryptoknight <kryptoknight@att.net>.
  The following description was provided:



  the pics have annotations on them.   i used cat5e cable and connectors to attach my pedal to my amphenol connector. i have a torch switch also tied in, so without pedal i get 100% amps using torch switch. i then plug in the cat5 end and i can switch on from either torch or pedal, but amps are controlled by pedal.

TIG remote (from the metaldropbox)

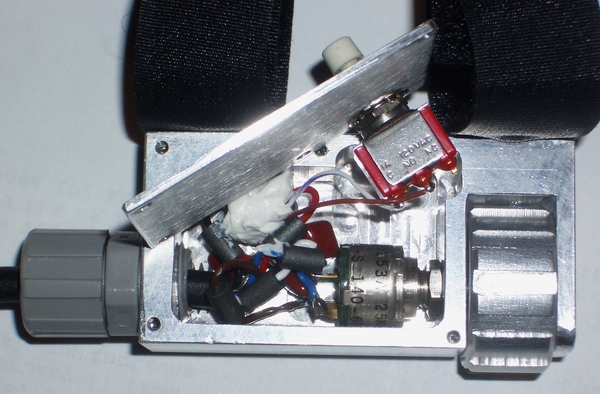

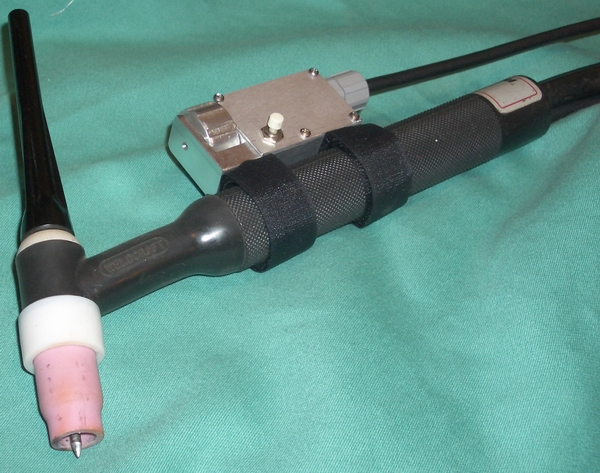

Here are the pix of my finger-tip tig controller. Nothing fancy – just started with a couple chunks of aluminum, and whittled until I liked the size and feel.

Some design notes:
The wheel is slightly larger than the width of the box, so that it sticks out enough on the top and sides to be manipulated by a gloved hand.
The pot has an 1/8" shaft, the end of which rides in the bore that is visible on the front of the unit.
The tap for the mounting thread for the pot had to go through the hole where the cable clamp is mounted - I almost didn't think of that in time ;-)
The switch is a snap-action microswitch-type; not absolutely necessary, but it has a nice feel.
The control cable is shielded, and there are ferrite beads and shunt capacitors on all leads.

George Dubovsky
